DFM1110680

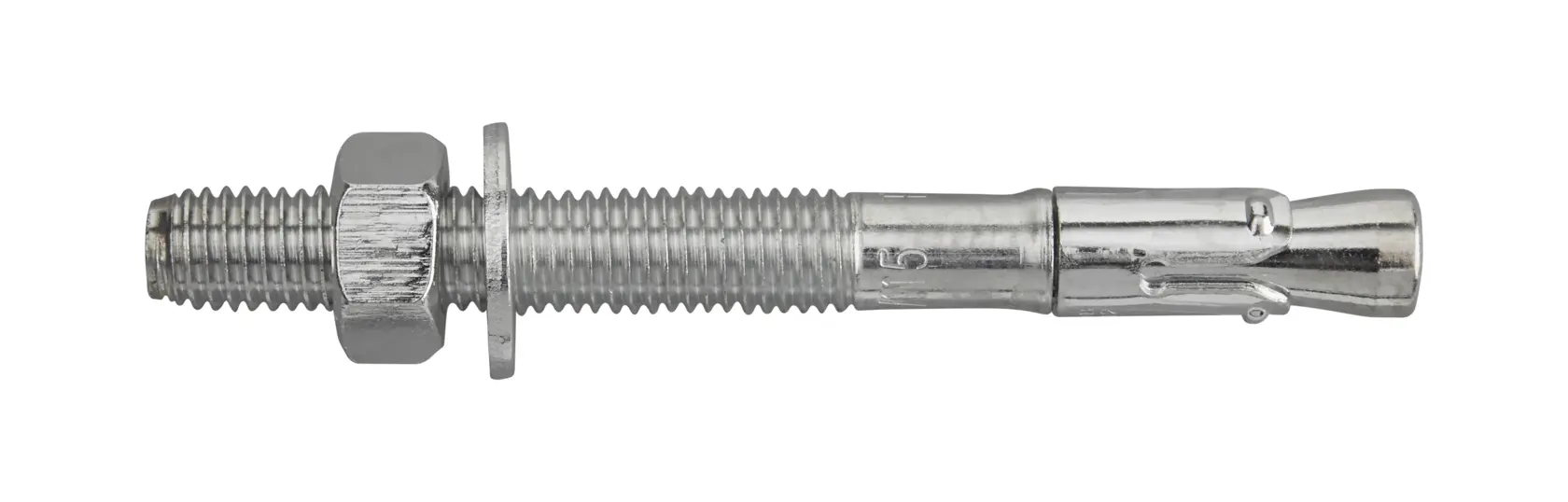

Ptb-Pro M12 X 175 Mm Zinc Plated (25 Pk)
Product details
The PTB-Pro throughbolt is a fully threaded, torque controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete.The anchor is easy to install and suitable for a variety of base materials with a nominal drill bit size the same as the anchor diameter. The wide range of available PTB-Pro anchor sizes also covers all common capacity demands with a superior load-displacement response that qualifies the PTB-Pro throughbolt for both standard and adverse loading conditions.
- Eta option 1 approval for cracked and uncracked concrete*
- Approved for seismic load applications (m8-m16* c1 approved and M12* c2 approved)
- Two approved embedment depths (M12 and m16)*
- Long thread for flexibility in fixture thicknesses
- Special cone angle for quick installation
- Fire resistance*
- * ptb-Pro zinc plated and stainless steel * ptb-Pro zinc plated
Product Type
Expansion Anchor
Product Finish
Zinc
Piece Count
25
Barcode
0075352962306
Individual or Set
Set
- (1) Pack Of (25)
- No Warranty
