Photo of DEWALT logo SKU not applicable on white background, bold yellow text in black rectangular box.
DFM1110160

PTB-PRO Zinc Plated (M8 x 105 mm) (100 Pk)

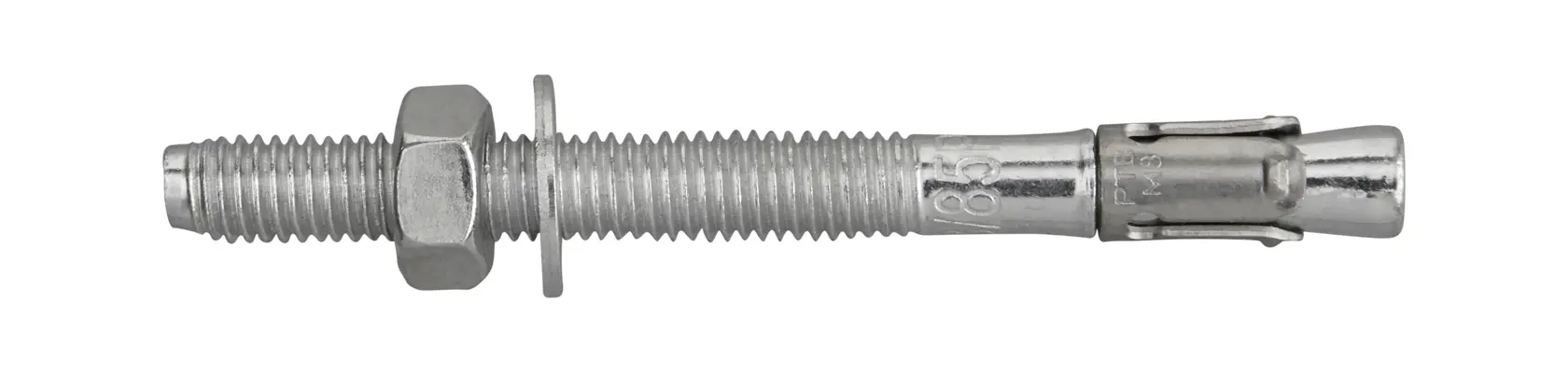

A close-up image of a metal anchor bolt with a nut and washer, isolated on a white background.

Product details

The PTB-Pro throughbolt is a fully threaded, torque controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete.The anchor is easy to install and suitable for a variety of base materials with a nominal drill bit size the same as the anchor diameter. The wide range of available PTB-Pro anchor sizes also covers all common capacity demands with a superior load-displacement response that qualifies the PTB-Pro throughbolt for both standard and adverse loading conditions.

  • Eta option 1 approval for cracked and uncracked concrete*
  • Approved for seismic load applications (M8-M16* C1 approved and M12* C2 approved)
  • Two approved embedment depths (M12 and M16)*
  • Long thread for flexibility in fixture thicknesses
  • Special cone angle for quick installation
  • Fire resistance*
  • * ptb-Pro zinc plated and stainless steel * ptb-Pro zinc plated

Product Type
Expansion Anchor
Product Finish
Zinc and Chrome Plated
Piece Count
1
Assembled Product Height
30.48-cm
Assembled Product Length
27.94-cm

  • (1) Pack Of (100) Anchors

  • No Warranty
