DCLE14301GB-XJ

DEWALT® 3 x 180 USB Green Beam Laser

DEWALT laser level kit with a black carrying case, a yellow and black laser level device, a yellow USB cable, and a metal ruler, all displayed together.

Product details

The DEWALT® DCLE14301GB-XJ USB 3-Line 180° Green Beam Laser is a lightweight, 3-line laser with a 30m range that incorporates POWERSTACK™ technology. The integrated USB battery, charged via USB-C cable, utilizes POWERSTACK™ battery technology to provide a minimum of 11 hours of runtime on a full charge. While the laser can be used while plugged in, it will reach 80% charge in as little as 30 minutes. The DCLE14301 emits a 3-line 180° green beam with a working range of 30m, or 100m when used with a detector. With improved accuracy of +/- 3mm at 10m, the laser delivers Professional precision and ensures accuracy on the job. In addition to manual tilt, self-leveling, and pendulum lock, the green cross-beam USB laser includes beam brightness adjustment to suit general job site lighting conditions, while the pivoting bracket with magnets provides flush mounting to metal traces or steel structures. Rated IP65 for protection against the elements, the DCLE14301 can also be tripod-mounted via the bracket's 1/4" or 5/8" tripod thread.

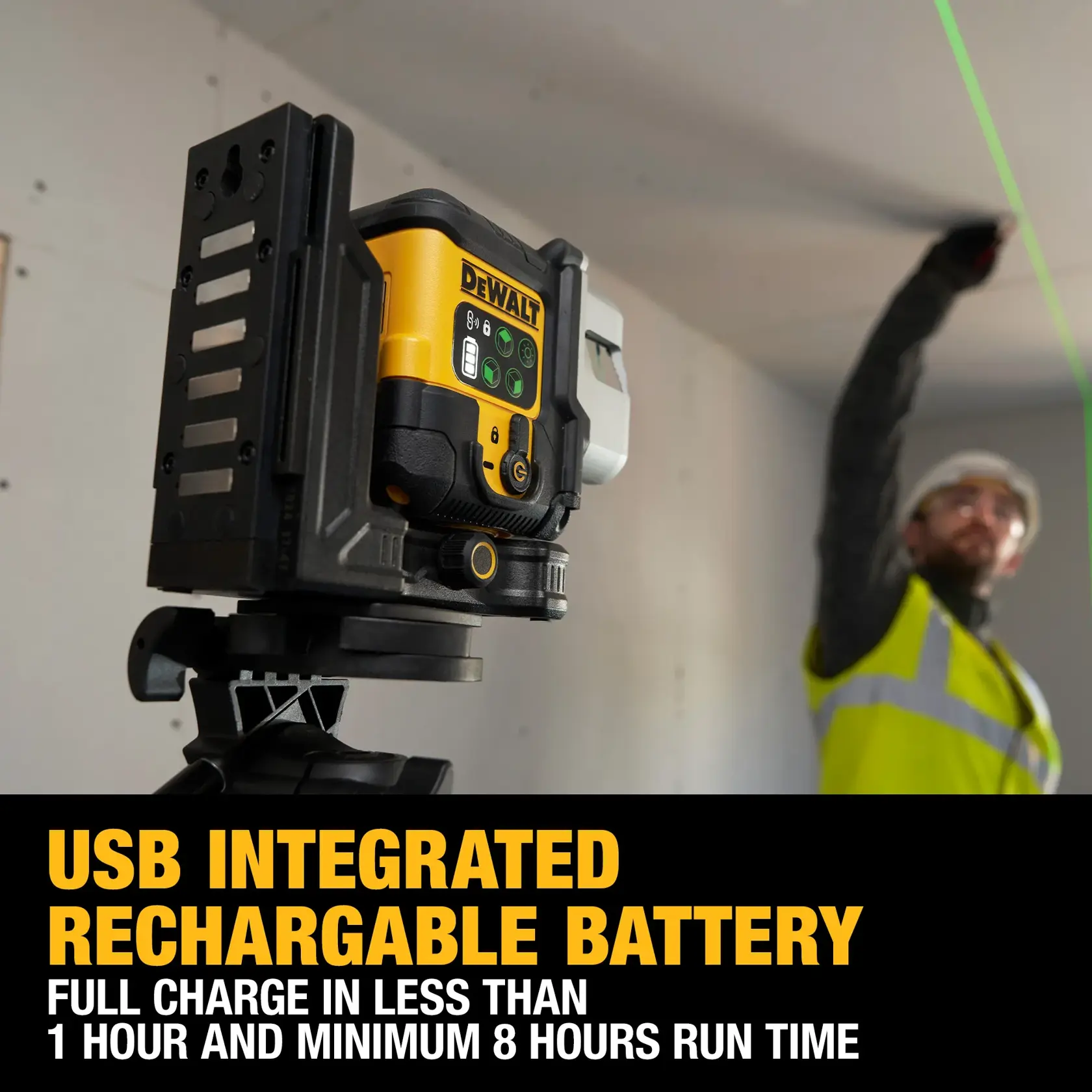

  • Recharges in 30min Using a 45w USB-pd Charger( Not Included) : Minimal downtime, ability to charge while using continuously. If charging is required on site can be done in conjunction with working allowing for no downtime. Quick charging increases productivity, ensures one charge will last a whole job.

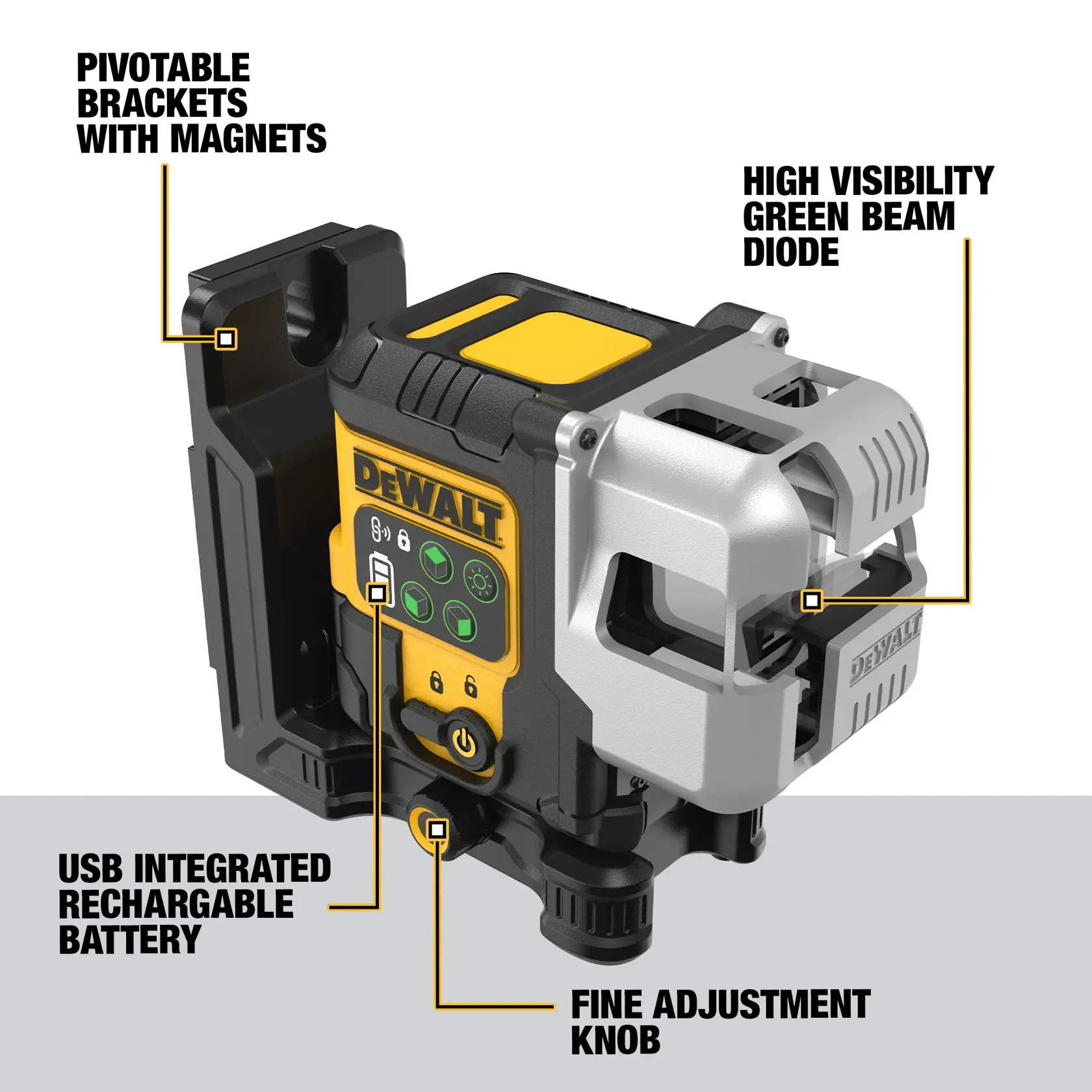

  • Pivotable Bracket With Magnets : Flush attachment to metal and steelwork, can be used and stabilized in many working environments includes
  • Beam Brightness Adjustment : 3 settings to adjust to light levels on jobsite ensuring visibility regardless of environment
  • Compact Size & Storage Case : Easily stored in toolbox & tool bags
  • 3mm Accuracy @ 10m : Professional precision and accuracy

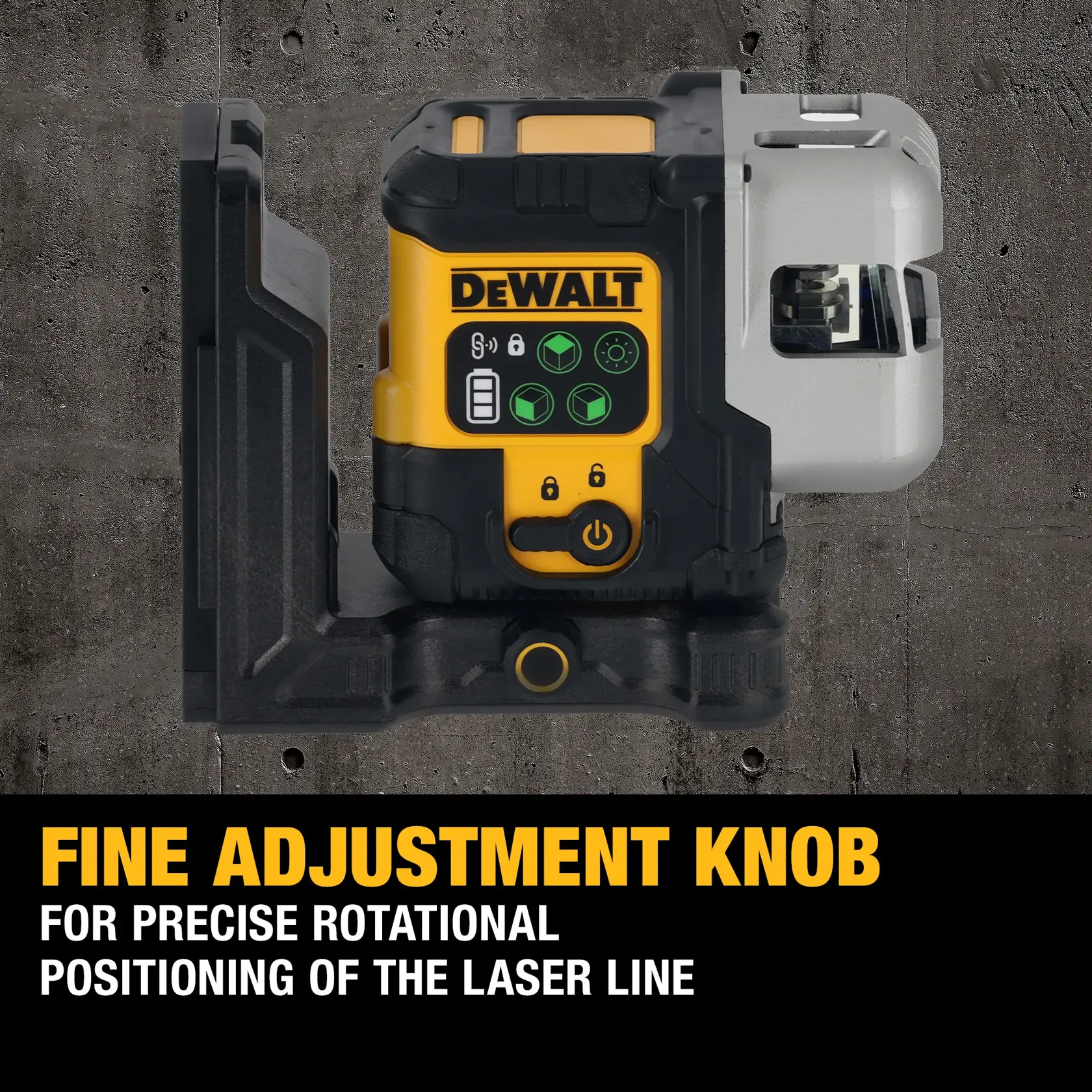

  • Fine Adjustment Knob : For precise rotational positioning of the laser line ensuring accuracy. Saving time whilst increasing productivity
  • High Visibility Green Beam Diode : Up to 30m visibility & 100m with detector ( sold separately) ensures better visibility on jobs site
  • 11 Hour Runtime : Runs for a full day on the jobsite without downtime
  • IP65 : Water/ debris resistance for dependable jobsite use
  • Manual Slope Function @ 4° : Allowing the application for staircase, ramps etc.

Product Type
Spot Laser Level
Cordless or Corded
Cordless
Power Source
Integrated Batteries
Total Number of Batteries
1
Color
Black/Yellow

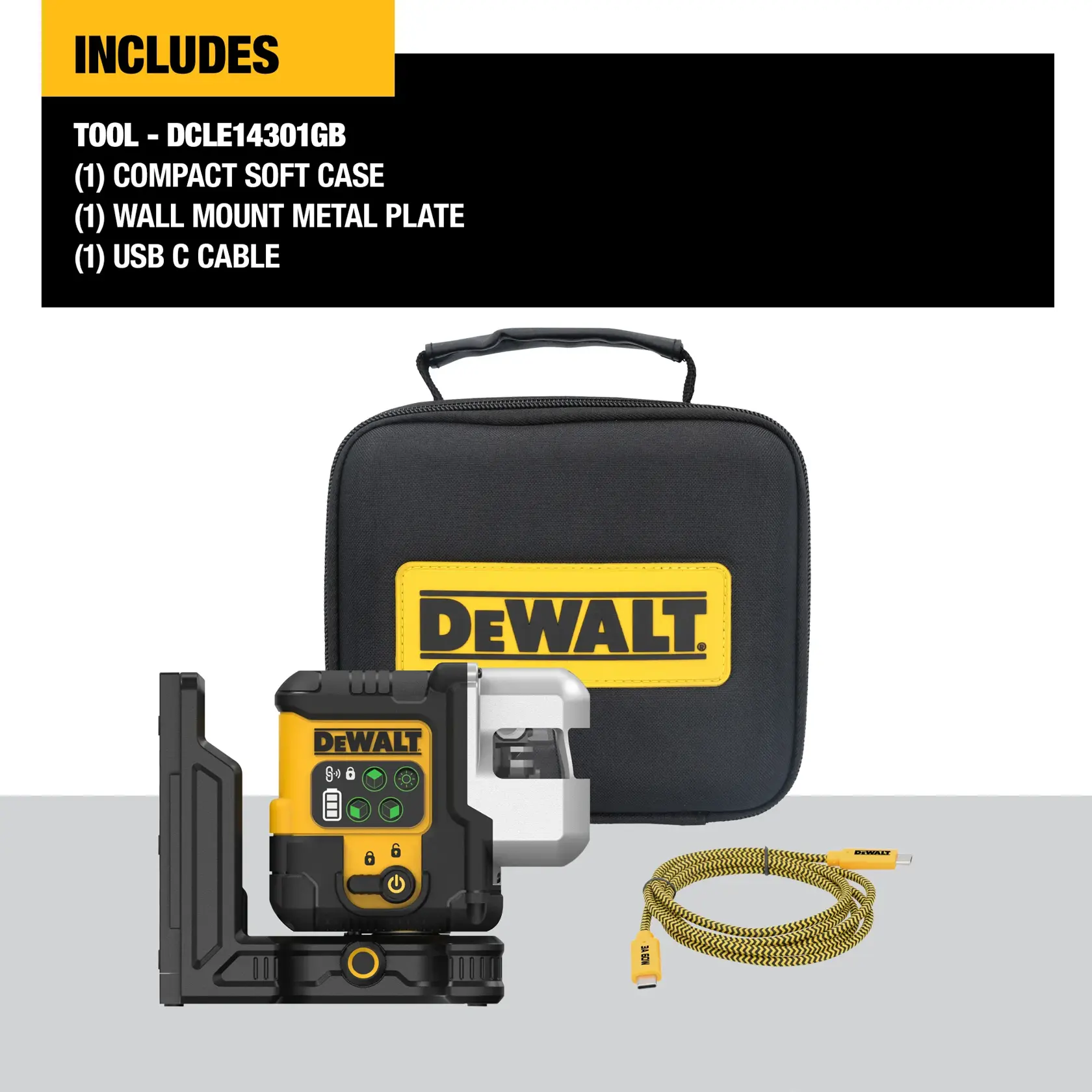

  • (1) 3 x 180 USB Green Beam Laser
  • (1) Soft case
  • (1) Wall Mount
  • (1) USB-C Cable

  • 1 Year Limited Warranty, 3 Year Limited Warranty When Registered
