DCD1623N-XJ

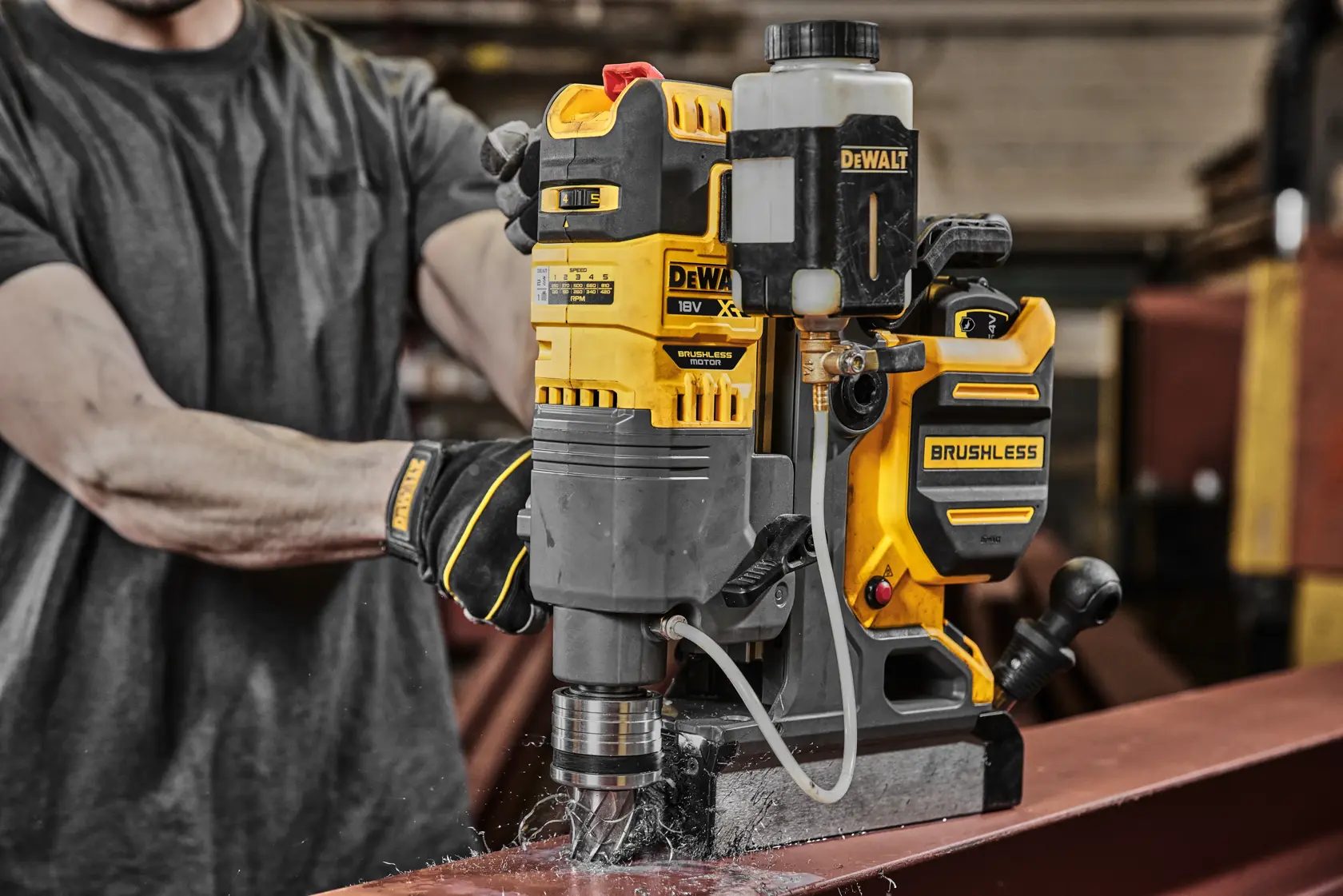

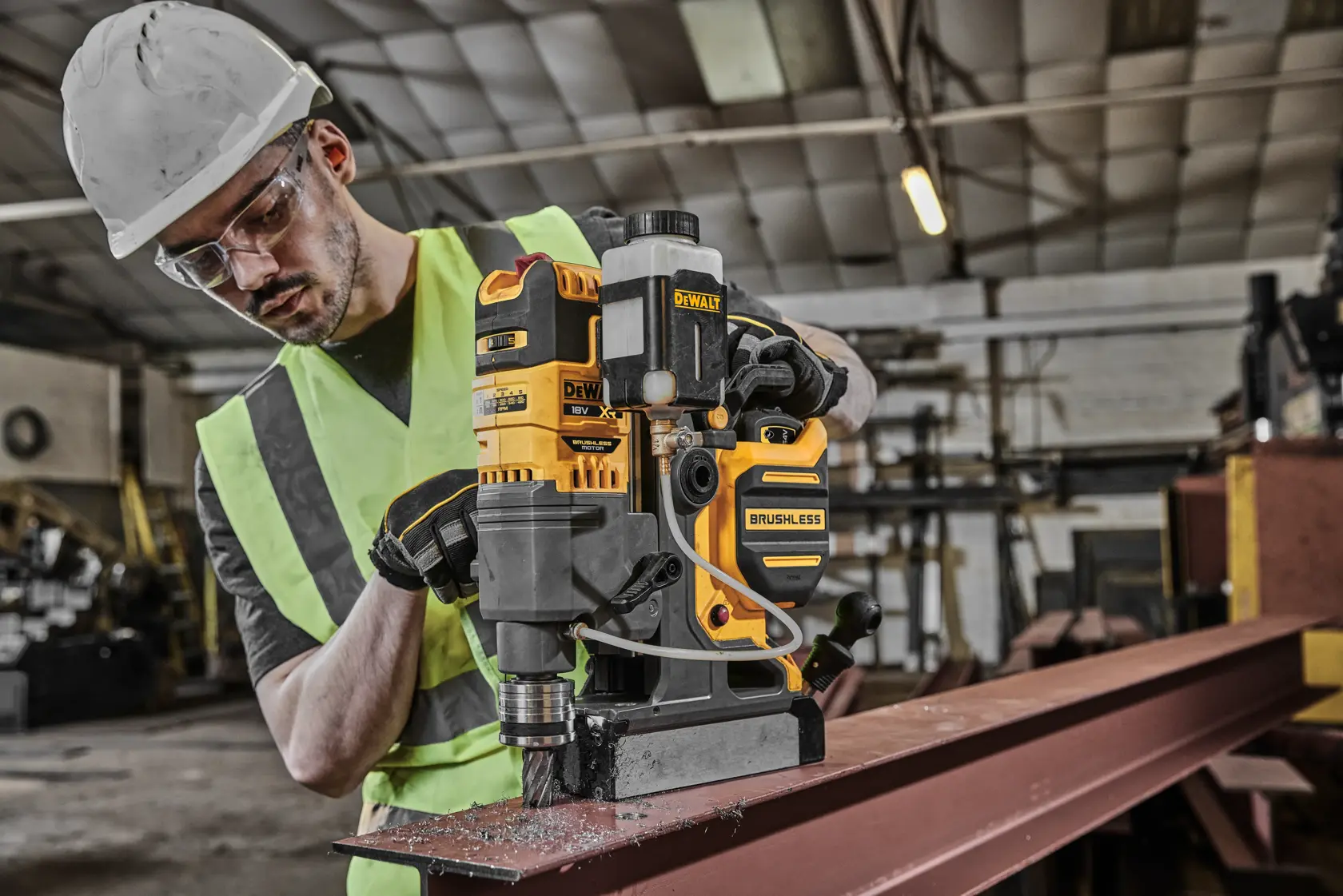

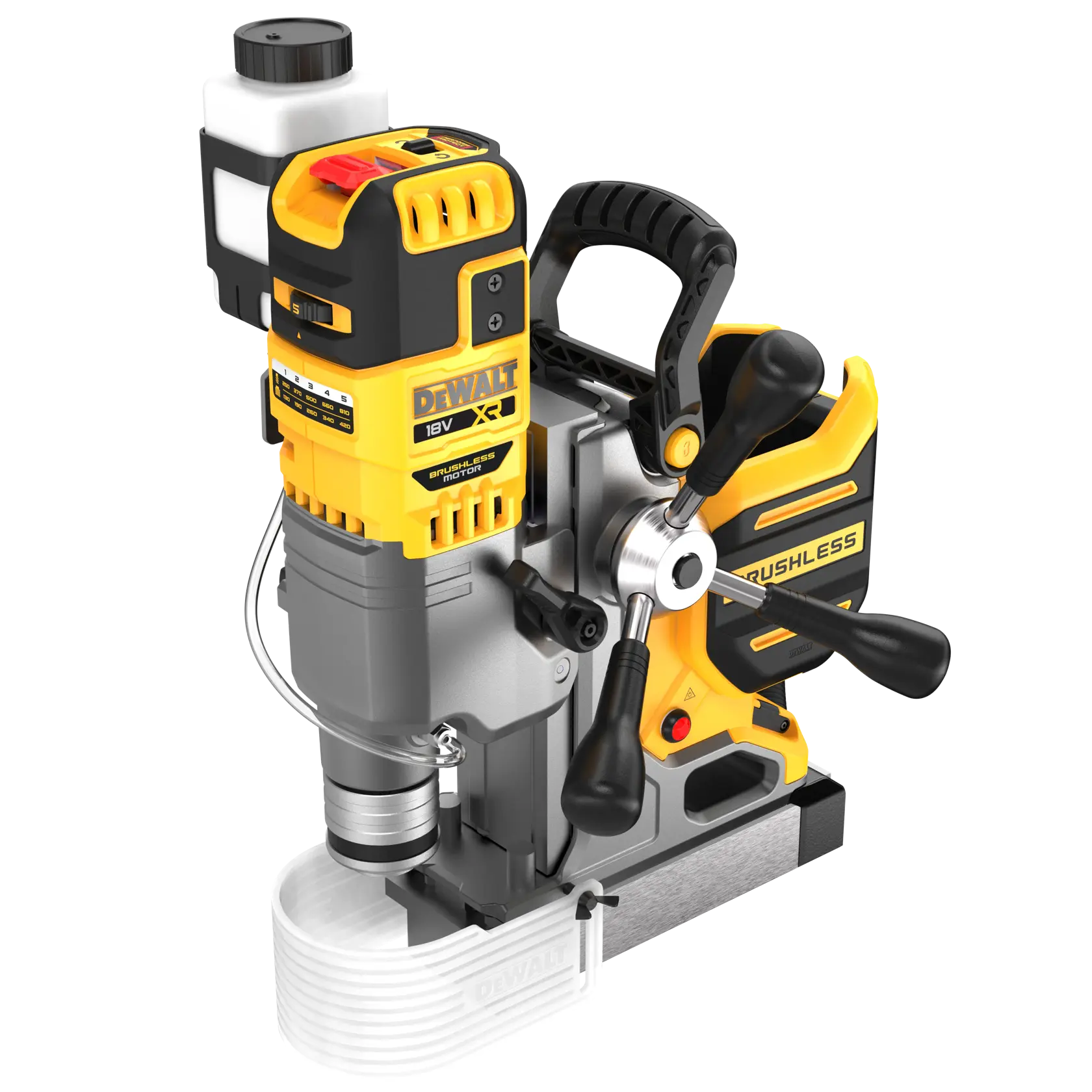

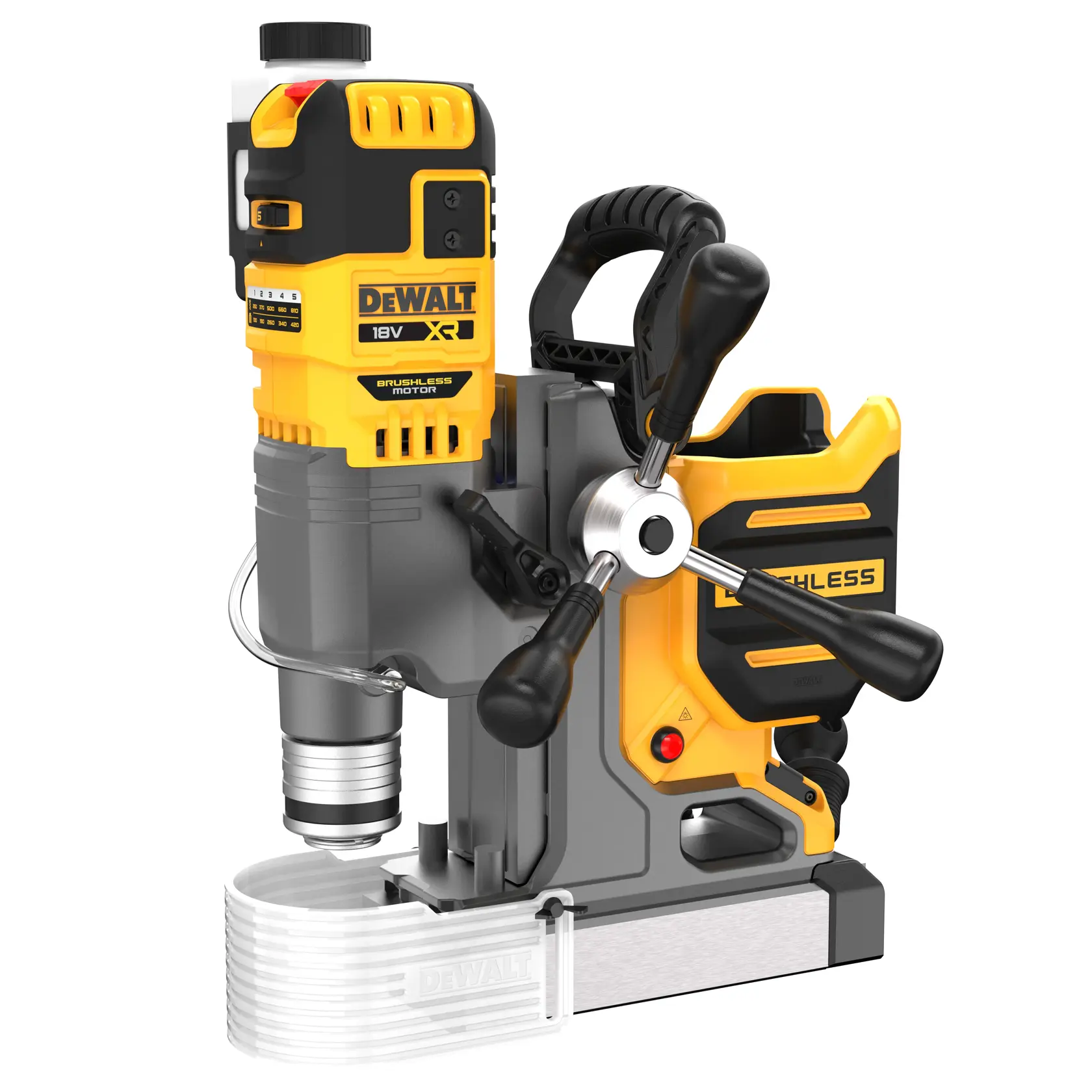

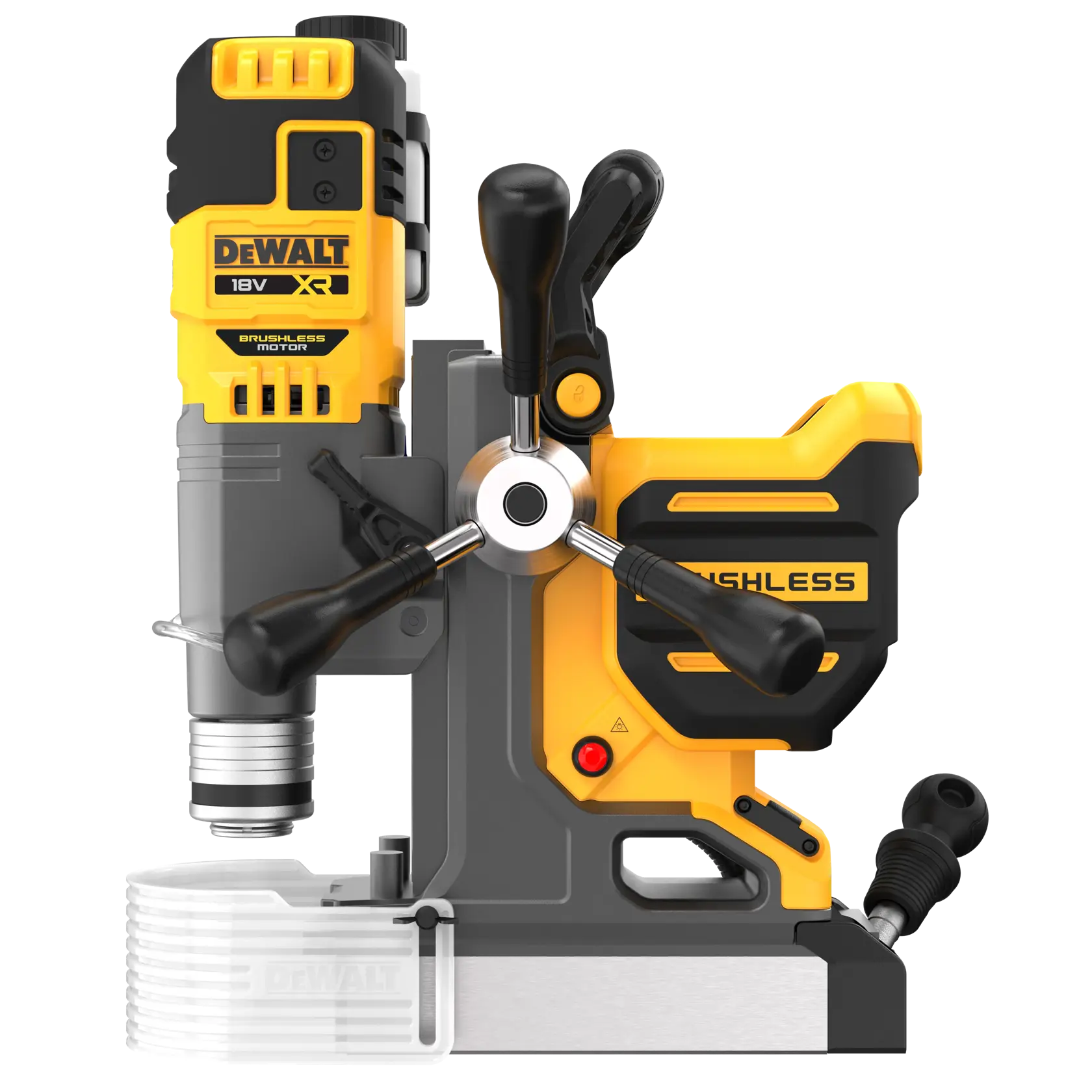

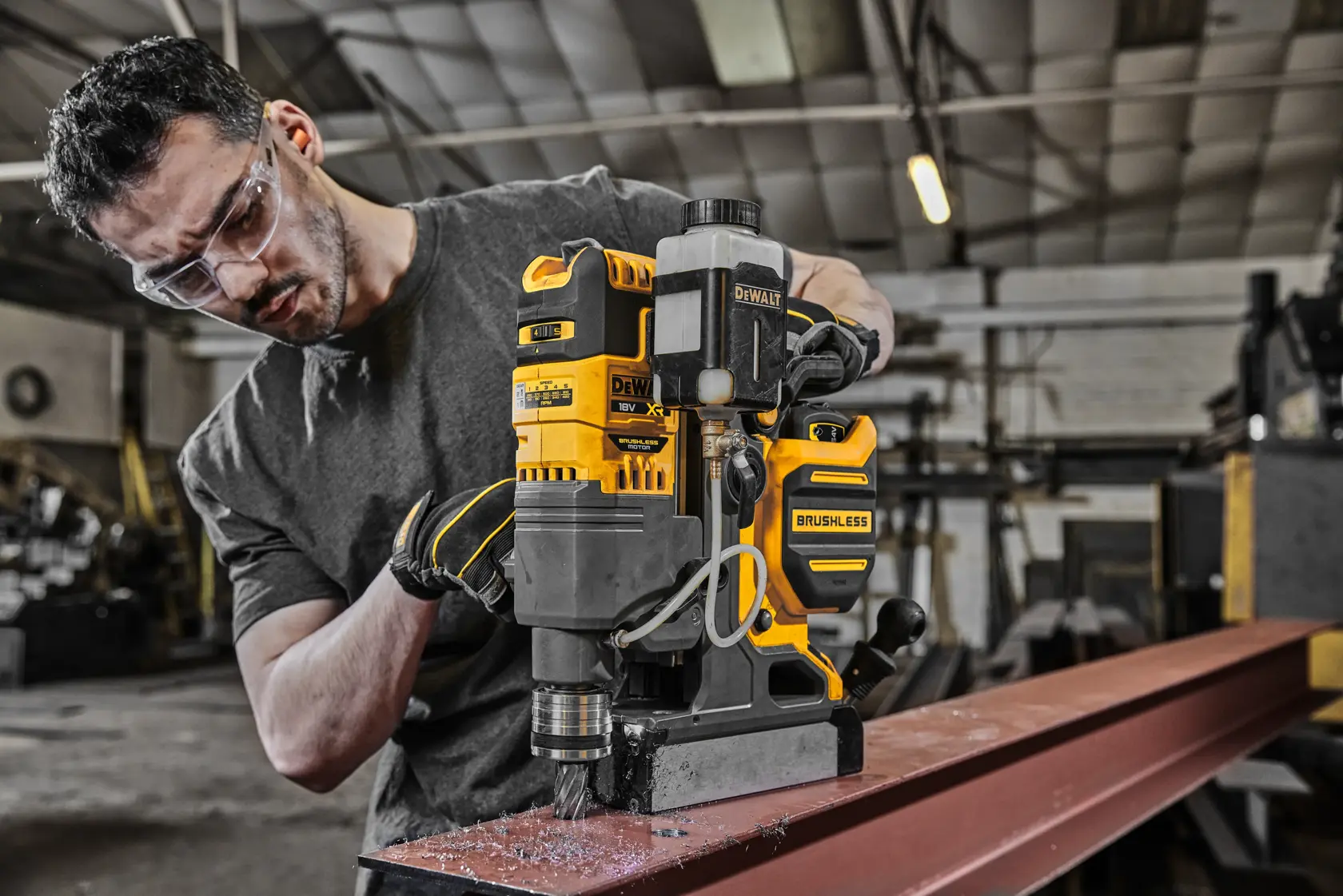

DEWALT® 18V XR® Brushless Magnetic Drill (Tool Only)

DEWALT® 18V XR® Brushless Magnetic Drill (Tool Only)

Product details

This 18V XR® Brushless 50mm Magnetic Drill features technology that makes the drill up to 32% more powerful when using a XR Flexvolt® DCB547 battery*. Built to help prevent tool failure due to lost power, it securely attaches to metal by using a permanent magnet base that requires no electrical charge. This high-performance magnetic drill press packs the capacity to drill up to 40 holes per charge*he Quick-Change Chuck system allows for tool free change between 19mm Weldon Shank and 13mm keyed chuck (Included). To keep the user in control, the E-Clutch is designed to turn off when it detects rotation, part of the PERFORM & PROTECT„¢ family. The drill has 5 variable speeds for each of the 2 mechanical gears for a total of 10 speed settings to allow for a wide RPM range for a variety of applications. *Using DCB547G battery vs. DCB184 battery, *Up to 40 holes per charge on 13mm ASTM A36 steel 20mm hole size using DCB547G battery.

  • 18V XR® brushless magnetic drill
  • Brushless Motor : Delivers high performance, extends tool life and allows for a much shorter design
  • High Drilling Capacity : Drilling up to 50 mm hole through 50mm structural steel
  • On Board LED : For high visibility in low light situations
  • Permanent Magnet : Requires no electrical charge to attach to steel
  • Adjust Speed Based on the Demands of the Job : With 5 variable speeds for each of the 2 mechanical gears for a total of 10 speed settings
  • Greater range of accessory compatibility with the motor height adjustment
  • Anti-rotation Technology : Designed to turn off when it detects rotation, part of the PERFORM & PROTECT™ family

Product Type
Drill Press
Voltage
18V
Cordless or Corded
Cordless
Power Source
Battery
Motor Type
Brushless

  • (1) 16mm Chuck

  • 1 Year Limited Warranty, 3 Year Limited Warranty When Registered
